Technical Information

• Material: 304, 304L, 316, 316L
• Size: diameter 5mm to 0.025mm

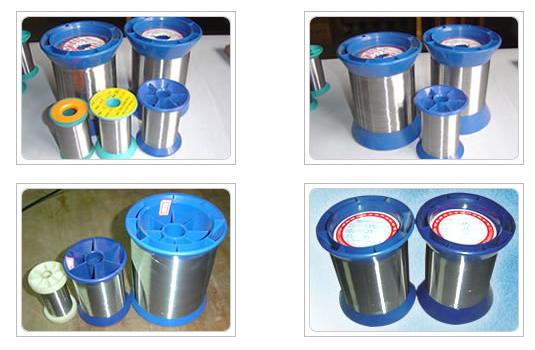

  Stainless steel wire uses in redrawing, mesh weaving, soft pipe, isolation layer in kitchen, steel rope, filter material, making of spring, etc.

  Wire Diameter (mm)	Allowed Difference (mm)	Max. Diameter Difference (mm)
  0.020-0.049	+0.002 -0.001	0.001
  0.050-0.074	±0.002	0.002
  0.075-0.089	±0.002	0.002
  0.090-0.109	+0.003 -0.002	0.002
  0.110-0.169	±0.003	0.003
  0.170-0.184	±0.004	0.004
  0.185-0.199	±0.004	0.004
  0.200-0.299	±0.005	0.005
  0.300-0.310	±0.006	0.006
  0.320-0.499	±0.006	0.006
