Wire Materials: Type 304, Type 304 L, Type 316 and Type 316 L.
Type 304 often refers to as "18-8" (18% chromium, 8% nickel ). T-304 is the basic stainless alloy mostly commonly utilized for wire cloth weaving. It withstands outdoor exposure without rusting and resists oxidation at an elevated temperature up to 1400 Degrees Fahrenheit. Type 304 L is very similar to T-304, the difference being the reduced carbon content for better weaving and secondary welding characteristics.
Type 316: Stabilized by the addition of 2% molybdenum, T-316 is an "18-8" alloy. Type 316 has better resistance to pitting corrosion than the other chromium-nickel stainless steels where brines, sulfur-bearing water or halogen salts, such as chlorides are present. Type 316 L: Type 316 L is very similar to T-316, the difference being the reduced carbon content for better wire cloth weaving and secondary welding characteristics.

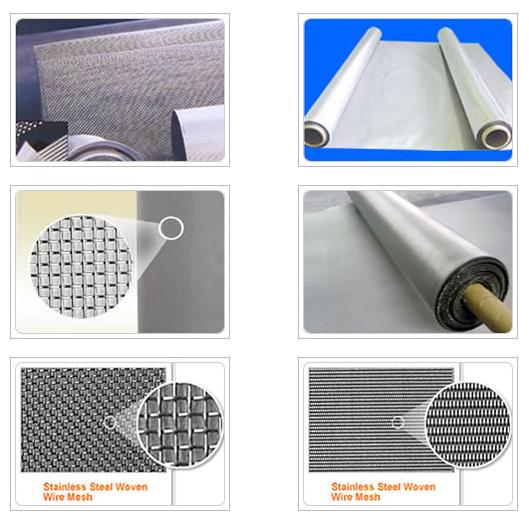

Weaving Patterns: Plain Weave Twill Weave Dutch Plain Weave Dutch Twill Weave Some Special Patterns Weaving patterns applied for wire mesh or wire cloth can be plain weave, twill weave, Dutch plain weave or Dutch twill weave. Plain Weave Wire Mesh and Twill Weave Wire Mesh form a square opening with equal mesh count horizontally or vertically. Hence woven wire mesh plain weave or twill weave is also called square opening wire mesh, or single layer wire mesh. Dutch Plain Woven Wire Cloth has a coarser mesh and wire in the warp direction and a finer mesh and wire in the weft direction. Dutch Plain Woven Wire Cloth makes an ideal filter cloth with a very compact, firm mesh with great strength. Dutch Twill Woven Wire Cloth offers higher strength than regular Dutch woven wire cloth. It packs even more wires in a given area than Dutch plain woven wire cloth. Generally, Dutch Twill Woven Wire Cloth offers finer mesh counts and lower flow than other Dutch Woven Wire Cloth.

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot Inch MM Inch MM 1x1 .080 2.03 .920 23.37 84.6 41.1 2X2 .063 1.60 .437 11.10 76.4 51.2 3X3 .054 1.37 .279 7.09 70.1 56.7 4X4 .063 1.60 .187 4.75 56.0 104.8 4X4 .047 1.19 .203 5.16 65.9 57.6 5X5 .041 1.04 .159 4.04 63.2 54.9 6X6 .035 .89 .132 3.35 62.7 48.1 8X8 .028 .71 .097 2.46 60.2 41.1 10X10 .025 .64 .075 1.91 56.3 41.2 10X10 .020 .51 .080 2.03 64.0 26.1 12X12 .023 .584 .060 1.52 51.8 42.2 12X12 .020 .508 .063 1.60 57.2 31.6 14X14 .023 .584 .048 1.22 45.2 49.8 14X14 .020 .508 .051 1.30 51.0 37.2 16X16 .018 .457 .0445 1.13 50.7 34.5 18X18 .017 .432 .0386 .98 48.3 34.8 20X20 .020 .508 .0300 .76 36.0 55.2 20X20 .016 .406 .0340 .86 46.2 34.4 24X24 .014 .356 .0277 .70 44.2 31.8 30X30 .013 .330 .0203 .52 37.1 34.8 30X30 .012 .305 .0213 .54 40.8 29.4 30X30 .009 .229 .0243 .62 53.1 16.1 35X35 .011 .279 .0176 .45 37.9 29.0 40X40 .010 .254 .0150 .38 36.0 27.6 50X50 .009 .229 .0110 .28 30.3 28.4 50X50 .008 .203 .0120 .31 36.0 22.1 60X60 .0075 .191 .0092 .23 30.5 23.7 60X60 .007 .178 .0097 .25 33.9 20.4 70X70 .0065 .165 .0078 .20 29.8 20.8 80X80 .0065 .165 .0060 .15 23.0 23.2 80X80 .0055 .140 .0070 .18 31.4 16.9 90X90 .005 .127 .0061 .16 30.1 15.8 100X100 .0045 .114 .0055 .14 30.3 14.2 100X100 .004 .102 .0060 .15 36.0 11.0 100X100 .0035 .089 .0065 .17 42.3 8.3 110X110 .0040 .1016 .0051 .1295 30.7 12.4 120X120 .0037 .0940 .0064 .1168 30.7 11.6 150X150 .0026 .0660 .0041 .1041 37.4 7.1 160X160 .0025 .0635 .0038 .0965 36.4 5.94 180X180 .0023 .0584 .0033 .0838 34.7 6.7 200X200 .0021 .0533 .0029 .0737 33.6 6.2 250X250 .0016 .0406 .0024 .0610 36.0 4.4 270X270 .0016 .0406 .0021 .0533 32.2 4.7 300X300 .0051 .0381 .0018 .0457 29.7 3.04 325X325 .0014 .0356 .0017 .0432 30.0 4.40 400X400 .0010 .0254 .0015 .370 36.0 3.3 500X500 .0010 .0254 .0010 .0254 25.0 3.8 635X635 .0008 .0203 .0008 .0203 25.0 2.63

Chemical composition of stainless steel wire: Grade Chemical Composition(%) C Si Mn P S Ni Cr Mo 304 =0.08 =1.00 =2.00 =0.045 =0.030 8.00~10.50 18.00~20.00 - 304H >0.08 =1.00 =2.00 =0.045 =0.030 8.00~10.50 18.00~20.00 - 304L =0.030 =1.00 =2.00 =0.045 =0.030 9.00~13.50 18.00~20.00 - 316 =0.045 =1.00 =2.00 =0.045 =0.030 10.00~14.00 10.00~18.00 2.00~3.00 316L =0.030 =1.00 =2.00 =0.045 =0.030 12.00~15.00 16.00~18.00 2.00~3.00 430 =0.12 =0.75 =1.00 =0.040 =0.030 =0.60 16.00~18.00 - 430A =0.06 =0.50 =0.50 =0.030 =0.50 =0.25 14.00~17.00 -

Sizes of Stainless Steel Wire: Wire Diameter(mm) Tolerance(mm) Max. Deviation Tolerance(mm) 0.020-0.049 +0.002 -0.001 0.001 0.050-0.074 0.002 0.002 0.075-0.089 0.002 0.002 0.090-0.109 +0.003 -0.002 0.002 0.110-0.169 0.003 0.003 0.170-0.184 0.004 0.004 0.185-0.199 0.004 0.004 0.200-0.299 0.005 0.005 0.300-0.310 0.006 0.006 0.320-0.499 0.006 0.006
