Name:

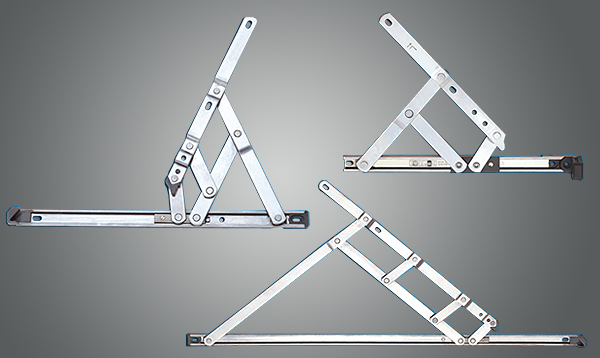

top hung friction stay

Item:

F5710

Description:

F5710 top hung friction stay series
size:8"-24"

The products are conformed to national technical standard GB/T3888-1999 for《aluminum alloy stainless steeI window hinges》.

Technical parameter:

Specification	Length	Length	Length	Length	Length	Casement Width	Arm Width	Arm How	Max.Door/ Window Height	Max.Door/ Window Width	Max.Door/ Window Weight	Supportive Suspension Strip Thickness	Height	Opening Angle
8"	219	29	112	66	99	18	16	4	500	1000	11	2.0±0.2	17±0.5	65°±2°
10"	274	31	180	52	149	18	16	4	1000	500	16	2.0±0.2	17±0.5	85°±2°
12"	320	31	199	79	174	18	16	5	1100	600	19	2.0±0.2	17±0.5	65°±2°
12"	320	31	199	79	172	18	16	4	1150	600	22	3.0±0.2	17±0.5	65°±2°
16"	141	31	220	153	188	18	16	4	1200	600	25	2.0±0.2	17±0.5	90°±2°
16"	417	31	284	89	219	18	16	5	1250	600	28	2.0±0.2	17±0.5	90°±2°
20"	517	31	175	300	262	18	16	5	1200	700	28	2.0±0.2	17±0.5	40°±2°
24"	622	31	194	384	314	18	16	6	1200	750	28	2.0±0.2	17±0.5	40°±2
